DZDT451 All Bands Smart Cell Phone Detector(Wall Mount)
DarZong Technology, Co. Ltd.                                                          達宗科技有限公司
      Please contact:     TEL: +886-3-562-6793   FAX: +886-3-562-6641          Sales:          Technical:
                   No. 20, Lane 19, Bade Road, Hsinchu City, 30069, Taiwan                                  台灣 30069 新竹市八德路19巷20號
Wall mount
Smart Remote
Control Options
Contact Us

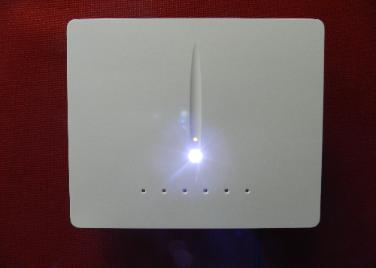

This is a fixed (Wall Mount) instrument for detecting
all cell phone signals for those applications need to
know the existence of powered up cell phones in the

>  It detect only cell phone signals. Wi-Fi optional

> It can trigger remote alarm (Siren and Strobe Light)
  at a preset sensitivity level.

> It can record and broadcast warning message.

> It can power up nearby jammer instantly and power off
  after a preset time interval.

> It can send messages to central control office via TCP/IP.

> It has fine sensitivity tuner for each individual frequency band.

> It can detect cell phone at distance over 50 meters.

> It run with AC power. No external adapter required.

> Flexible selections of remote connector .

Please down load "Smart Application Solution" for
making the best option selection.
Smart Application Solution

Frequency Bands: (Standard model)
700                         703 ~ 733 MHz (up-link
800                         832 ~ 862MHz (up-link)
900                         880 ~ 915 MHz (up-link)
1800                   1710 ~ 1785 MHz (up-link)
2100                     1920 ~ 1980 MHz (up-link)
2600                     2550 ~ 2620 MHz (FDD up-link +TDD)

Frequency coverage can be customized

Antenna:       Multi-band quarter-wave monopole omni-directional
(maximum gain at vertical position)

Sensitivity:  Individually adjustable

GSM:                  >  - 55 dBm @ antenna
CDMA & UMTS : >  - 65 dBm @ antenna
Rejection                  > 25 dB @ out of band

Detection Mode       RF power peak detection

Indicator:                White LED flasher+ Beeper
Options: see download file

Input Power:         100-240 VAC, 50-60Hz

Output:              5V DC TTL and/or N.O. Contact

Dimension:          27 cm x 24cm x 7cm

Weight:                1.1 Kg

Warranty:            One year
